Masar by JAE

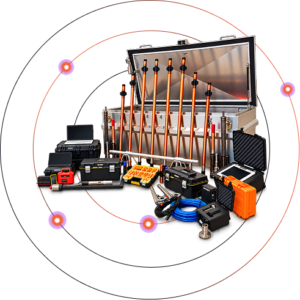

Pulse MWD Kit Package

The MASAR Pulse MWD Kit Package brings together JAE downhole electronics, a linear pulse mechanical section and dual-decoder surface equipment — supplied with all handling gear, operating equipment, repair tools and replacement parts for continual operation.

  • Positive pulse data transmission
  • Collar sizes 76mm – 203mm (3.0" – 9-5/8")
  • At Bit, RSS and Resistivity compatible
  • Survival temperature -40°C to 195°C
  • 500+ hours battery capacity
  • 48 MB internal logging memory
Details
Enquire Now
Pulse MWD Kit Package

Downhole

  • Smart DM Directional Sensor
  • Pulser Driver with memory
  • Linear Pulse Mechanical Section
  • Military MWD Connection

Surface

  • Dual Pulse Decoder with Auto Sync Recovery
  • 21.5" Widescreen display or optional Safe Area Decoder Interface
  • Dual Transducer Technology
  • At Bit, RSS and Resistivity compatible
  • All handling gear, operating equipment, repair tools and replacement parts

Optional

  • Digital Gamma While Drilling
  • Pressure While Drilling
  • GYRO While Drilling Controller
  • At Bit, RSS and Resistivity compatible

Included in the Kit

Operation

Data Transmission
Positive Pulse
Collar Sizes
76mm – 203mm (3.0" – 9-5/8")
Operating Flow Rate
0.20 – 5.00 m³/min (50–1200+ gpm)
Flow Switch
Vibration, located in the Pulser Driver
Electronics and Directional Sensor – SDM
Operating Pulse Width
0.250 – 2.00 sec
Programmable Sequences
4 primary + 2 dynamic
downlinkable configurable sequences

Power & Environment

Power Supply
Lithium 28 VDC / 3 amp
Battery Capacity
500+ hours (using 2 battery modules)
Survival Temperature
-40°C to 195°C
Bend Radius
25° / 10m
LCM Tolerance
30 – 50 ppb concentration, any size, premixed
Shock Limit
500g, 0.5 msec, ½ sine all axes
Internal Logging Memory
48 MB

Kit Components

Every core product supplied with the Pulse MWD Kit Package — explore each one for full features and specifications.

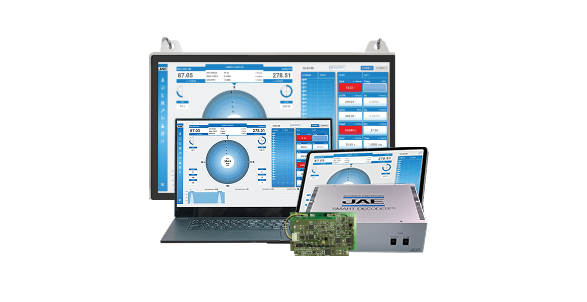

Smart Decoder

Smart Decoder

A next-generation MWD pulse signal decoder with dual pressure-processing pipelines for reliable signal detection, telemetry decoding, and seamless pressure sensor integration.

Explore Product
Enquire Now

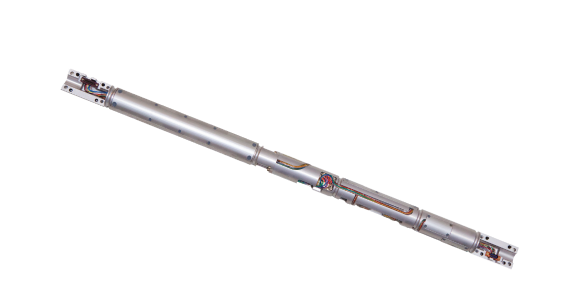

Smart Directional Module

Smart Directional Module

A compact downhole directional measurement system providing continuous inclination, azimuth, toolface, and drilling dynamics data for accurate wellbore navigation.
Explore Product
Enquire Now

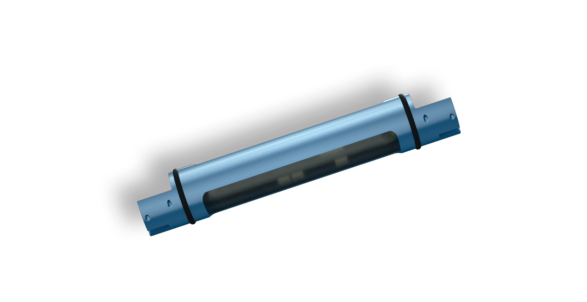

Smart Pulser Driver

Smart Pulser Driver

A rugged MWD pulser controller with configurable firmware, optimized power management, onboard memory, and diagnostic capabilities for demanding directional drilling operations.
Explore Product
Enquire Now

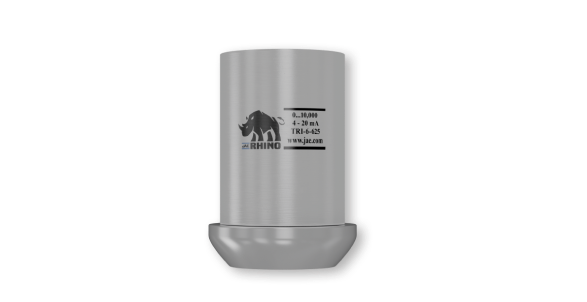

RHINO Pressure Transducers

RHINO Pressure Transducers

Rugged pressure transducers designed for MWD systems, supporting 4–20 mA pressure signals and single, dual, or triple sensor configurations for reliable downhole measurement.
Explore Product
Enquire Now

Optional Tools

Extend the Pulse MWD Kit with formation, pressure and gyroscopic measurements.

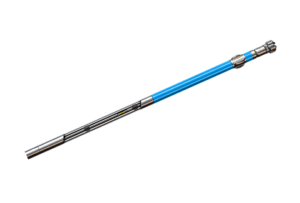

Digital Gamma While Drilling

REAL-TIME FORMATION EVALUATION

Digital Gamma While Drilling

Digital Gamma While Drilling
A downhole gamma measurement solution providing real-time natural gamma radiation data to support formation evaluation, well placement, and geosteering while drilling.
Explore Product
Enquire Now

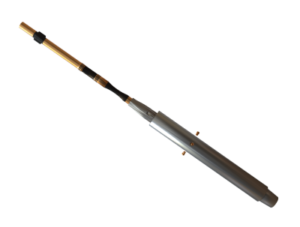

Pressure While Drilling

REAL-TIME DOWNHOLE PRESSURE

Pressure While Drilling

Pressure While Drilling
A precision pressure measurement module designed to deliver real-time and logged downhole pressure data for wellbore management, kick detection, and ECD optimization.
Explore Product
Enquire Now

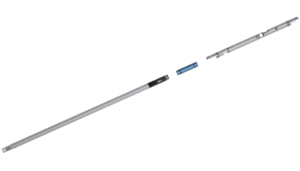

Gyro While Drilling

GYROSCOPIC DIRECTIONAL MEASUREMENT

Gyro While Drilling

Gyro While Drilling
A gyroscopic directional measurement solution designed for MWD operations, supporting accurate wellbore surveying and positioning in challenging magnetic environments.
Explore Product
Enquire Now
