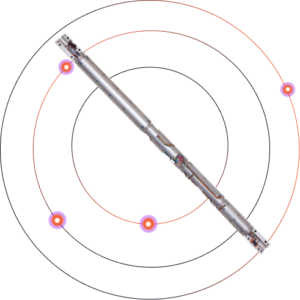

Smart Directional Module

SMART directional module is the complete downhole package. Engineered for quality using JAE’s proprietary sensor technology, this is a best-in-class wellbore navigation system designed for continuous downhole measurements using advanced features that exceed the demands of today’s drilling operation.

  • Digital Directional Module
  • Integrated azimuthal gamma controller
  • Compact, uni-body chassis
  • 24-bit ADC for precise 6-axis surveys
  • Operating temperatures up to 185°C
  • 48MB on-board memory
Details
Enquire Now
Smart Directional Module

Standard Features

  • Digital Directional Module.
  • MWD Microcontroller / Microprocessor.
  • 24-bit ADC for Precise 6-Axis Surveys.
  • Calibration Coefficients Stored On-Board.
  • Compact, uni-body chassis.
  • Designed for continuous downhole operation.
  • Integrated azimuthal gamma controller.
  • Operating temperatures up to 190°C.
  • Lifetime operating statistics.

Advanced Telemetry

  • Wellbore position; inclination, azimuth, toolface (MagTF, GravTF).
  • Raw 6-axis vector variables: Ax · Ay · Az + Mx · My · Mz.
  • Dynamic inclination & azimuth.
  • Temperature & battery statistics.
  • Drilling dynamics stick-slip & RPM.
  • Multi-axial shock & vibration.
  • Babelfish mnemonics.
  • Azimuthal gamma up to 16 bins per packed parameter.
